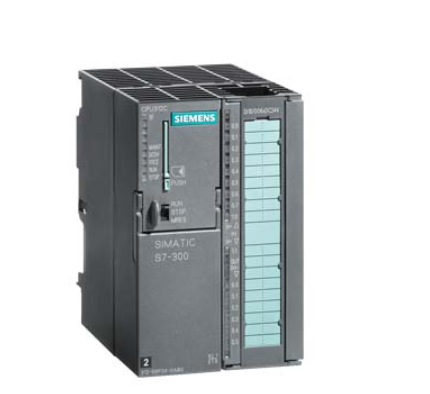

SIEMENS Signal template SIMATIC S7-300 Sensor signal module 6ES7338-4BC01-0AB0

16 review

Product Code:

6620.01 0.00

SIMATIC S7-300, Signal module for 3 SSI encoders for reading in the position value with 2 FREEZE inputs, 1x 20-pole Supports isochronous mode

Quantity

Subtotal: $6620.01

Add To Cart CONSULTING SERVICE

Product details

Supply voltage
Load voltage L+
● Rated value (DC)		24 V
● permissible range, lower limit (DC)		20.4 V
● permissible range, upper limit (DC)		28.8 V
Input current
from load voltage L+ (without load), max.		100 mA
from backplane bus 5 V DC, max.		160 mA
Encoder supply
24 V encoder supply
● 24 V		Yes; L+ (-0.8 V)
● Output current, max.		900 mA
Power loss
Power loss, typ.		3 W
Digital inputs
Input voltage
● for signal "0"		-3 to +5V
● for signal "1"		11 to 30.2 V
Input current
● for signal "0", max. (permissible quiescent current)		2 mA
● for signal "1", typ.		9 mA
Input delay (for rated value of input voltage)
for standard inputs
— at "0" to "1", min.		300 µs
Cable length
● shielded, max.		600 m
Encoder
Number of connectable encoders, max.		3
Connectable encoders
● Absolute encoder (SSI)		Yes
● 2-wire sensor		Yes
Encoder signals, absolute encoder (SSI)
● Cable length, shielded, max.		320 m; 320 m at 125 kHz; 160 m at 250 kHz; 60 m at 500 kHz; 20 m at 1 MHz
Interrupts/diagnostics/status information
Alarms
● Diagnostic alarm		Yes
connection method
required front connector		20-pin
Dimensions
Width		40 mm
Height		125 mm
Depth		120 mm
Weights
Weight, approx.		235 g
