Product details

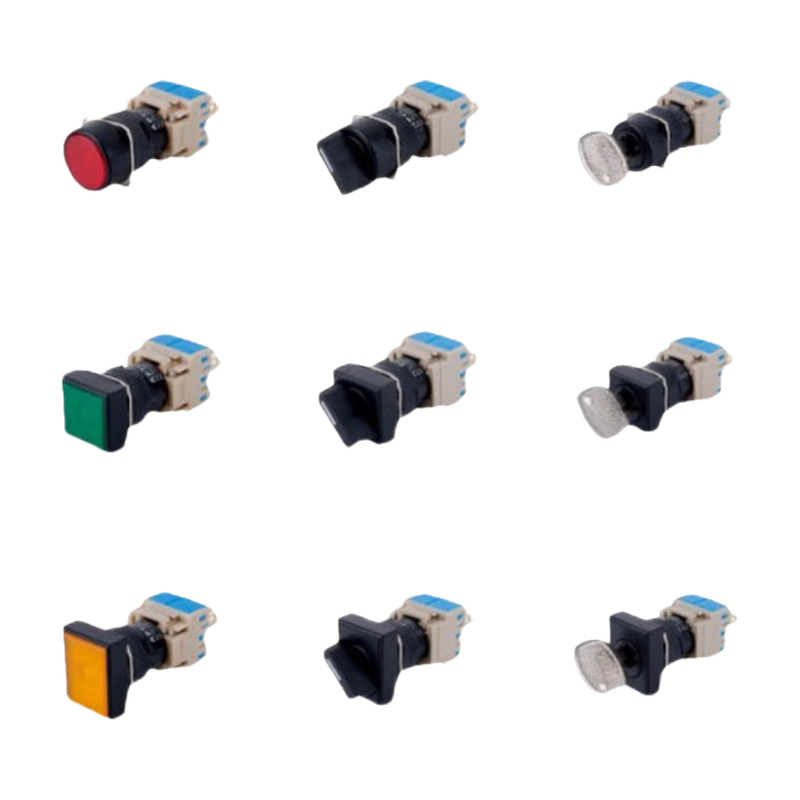

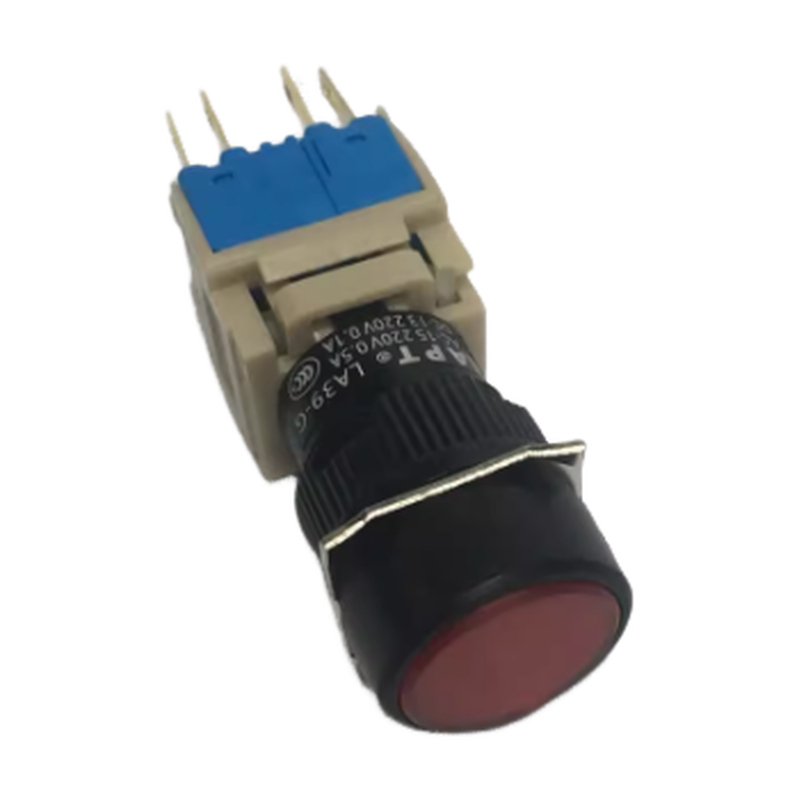

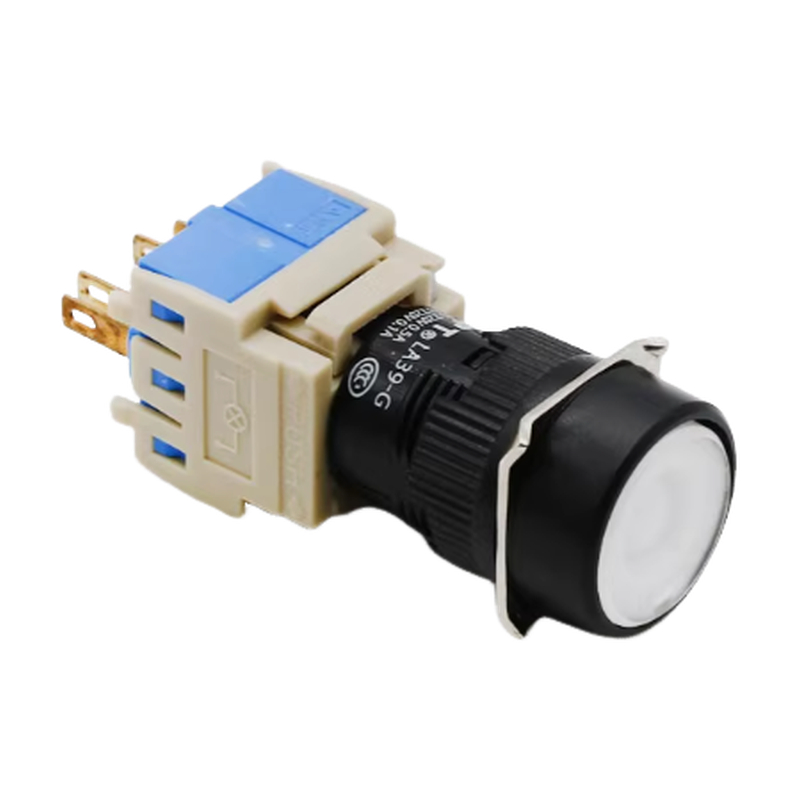

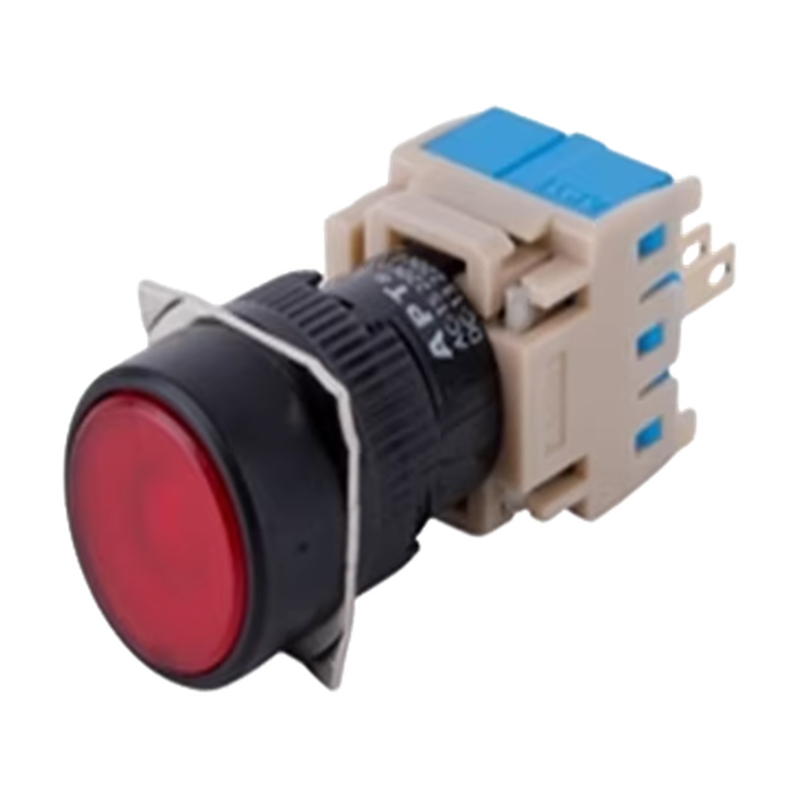

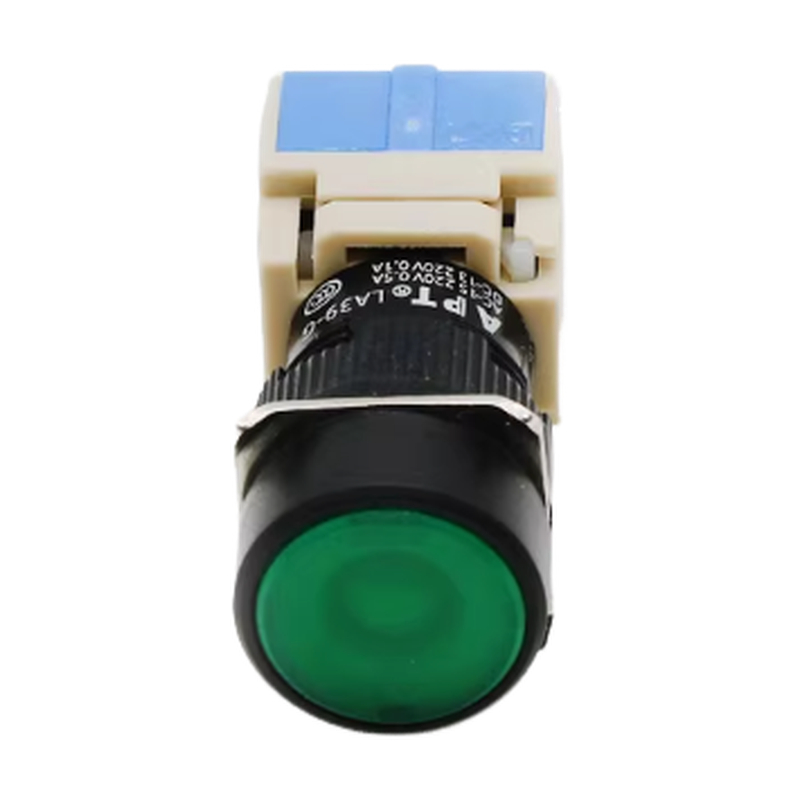

LA39-G（Φ16mm）
The LA39-G series of products make up for the shortcomings of other products, and their clever design, complete specifications, convenient installation, beautiful, and reliable operation are the greatest advantages of this series of products.
Important Parameters
Rated Insulation Voltage AC250V 50Hz Rated Thermal Current 5A Electrical Endurance 100,000 times for AC-15 50,000 times for DC-13 Rated Current AC-15 24V/2A、110V/1A、220V/0.5A
DC-13 24V/0.7A、110V/0.2A、220V/0.1A
Main Parameters
Rated Insulation Voltage | AC250V 50Hz |
Power Frequency Withstand Voltage | AC1500V 50Hz .5s |
Mechanical Endurance | 1,000,000 times for normal pushbuttons 100,000 times for knobs 50,000 times for key switches and E-stop pushbuttons |
Electrical Endurance | 100,000 times for AC-15 50,000 times for DC-13 |
Ambient Temperature | -25℃～55℃ |
Storage Temperature | -30℃～70℃ |
Action Frequency | 1,200 times per hour |
Certificate | CCC、CE、RoHS |
Compliance Standards | IEC 60947 / GB 14048.5 |
Degree of Protection | IP40 (standard products) IP65 (customized) |
Altitude | not more than 2,000m |
Rated Thermal Current | 5A |
