Product details

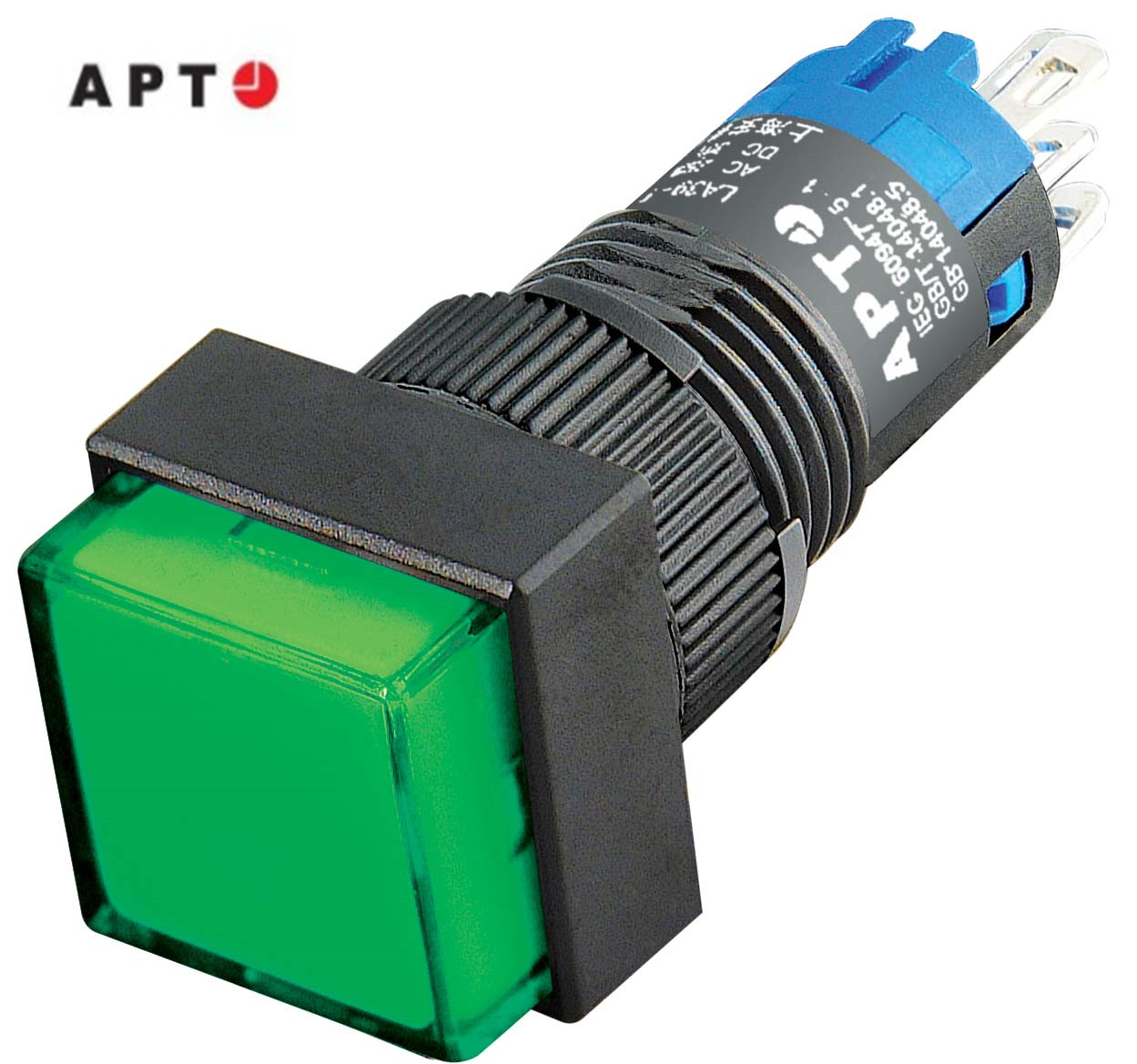

LA39-F（Φ12mm）

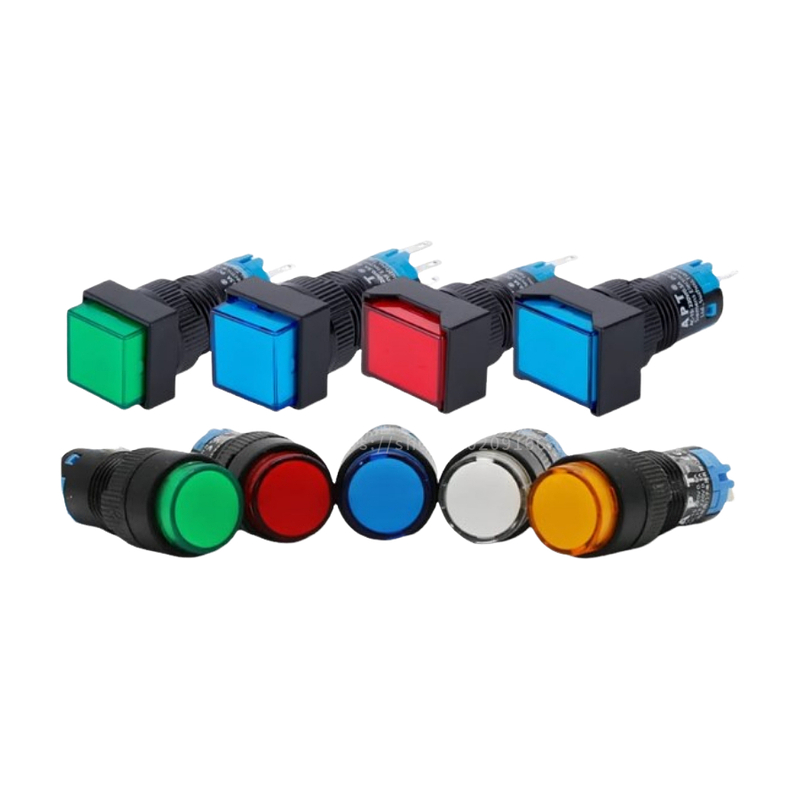

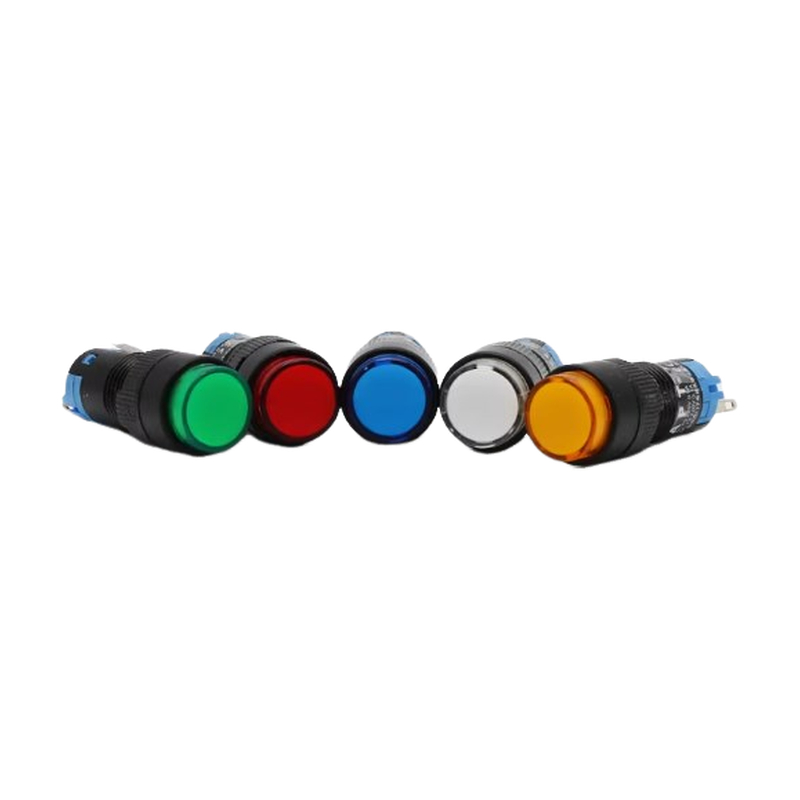

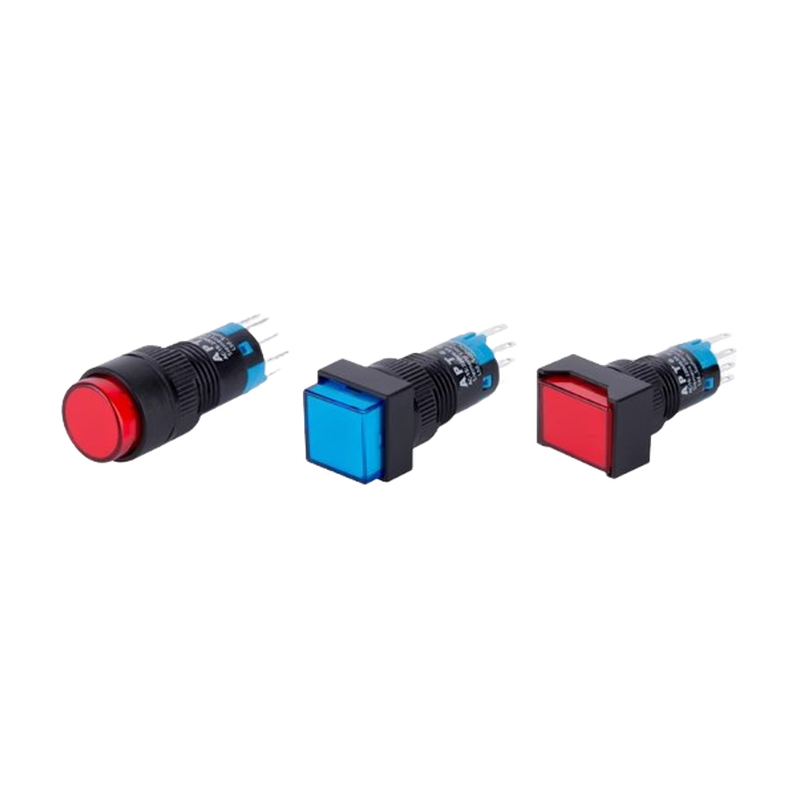

Aesthetic, delicate, compact and reliable. Round, square and rectangular heads. Normal pushbutton and illuminated pushbutton are included in terms of the variety.
Important Parameters
Rated Insulation Voltage AC660V 50Hz Rated Thermal Current 5A Power Frequency Withstand Voltage AC1890V Certificate CCC、CE、RoHS
Main Parameters
Rated Insulation Voltage | AC250V 50Hz |
Power Frequency Withstand Voltage | AC1500V 50Hz .5s |
Mechanical Endurance | 200,000 times for normal pushbuttons and illuminated pushbuttons 100,000 times for maintained pushbuttons |
Electrical Endurance | 100,000 times for AC-15 50,000 times for DC-13 |
Ambient Temperature | -25℃～55℃ |
Storage Temperature | -30℃～70℃ |
Action Frequency | 1,200 times per hour |
Certificate | CCC、CE、RoHS |
Compliance Standards | IEC 60947 / GB 14048.5 |
Degree of Protection | IP40 |
Altitude | Not more than 2,000m |
Rated Thermal Current | 5A |
