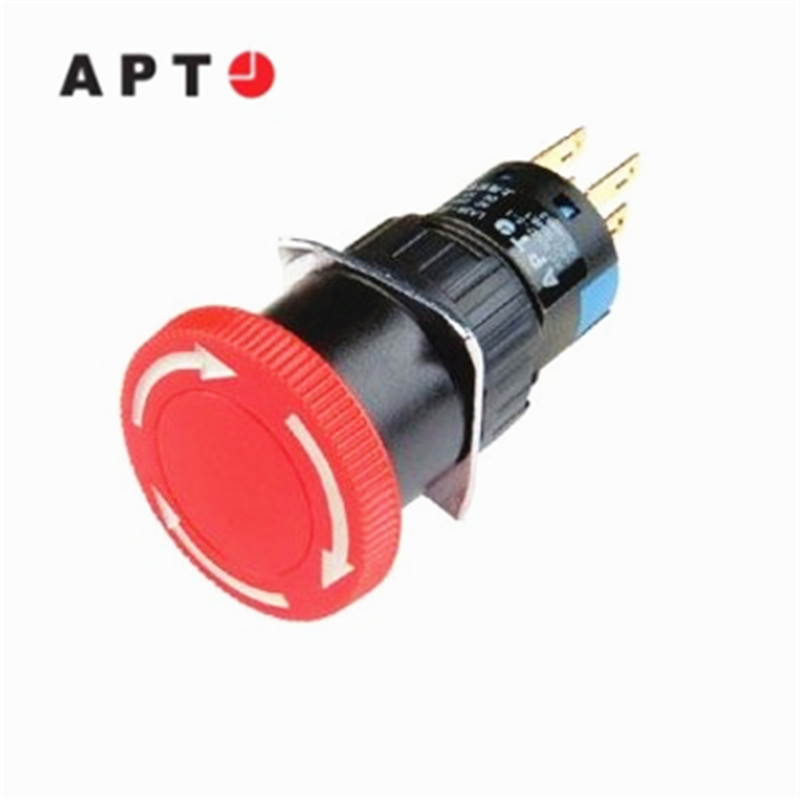

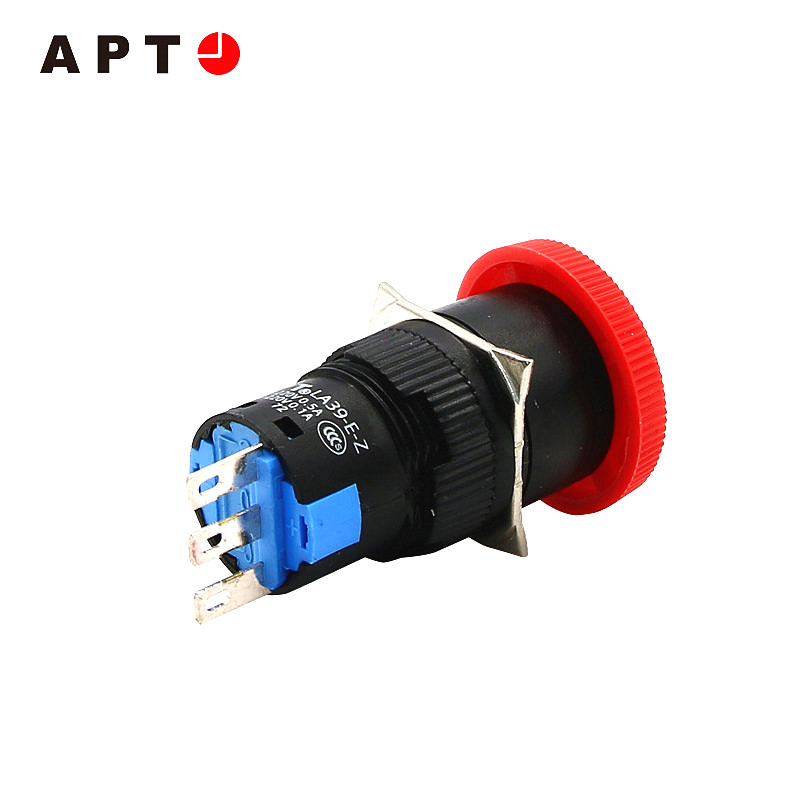

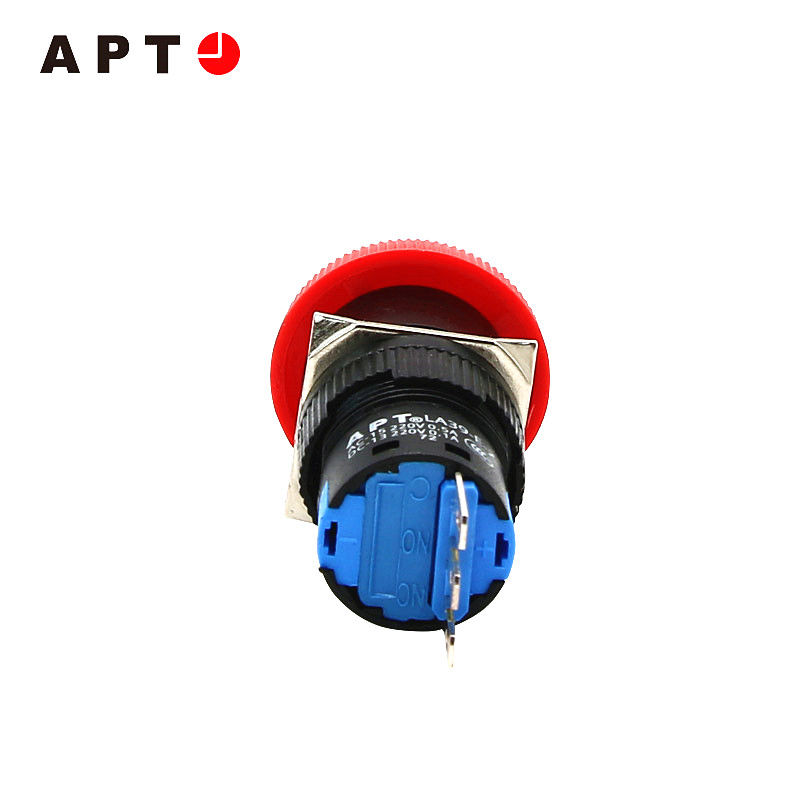

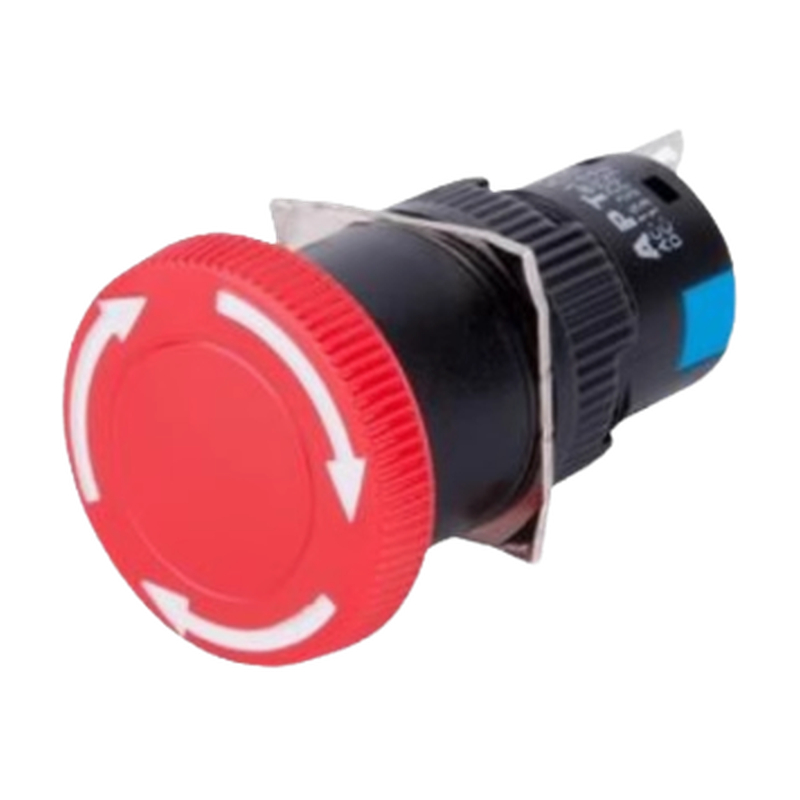

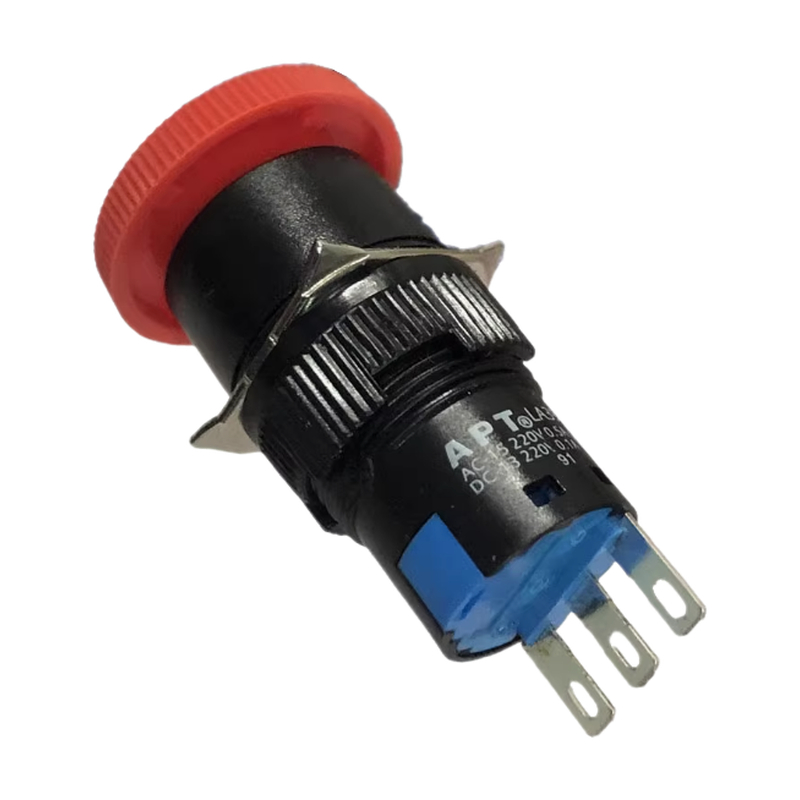

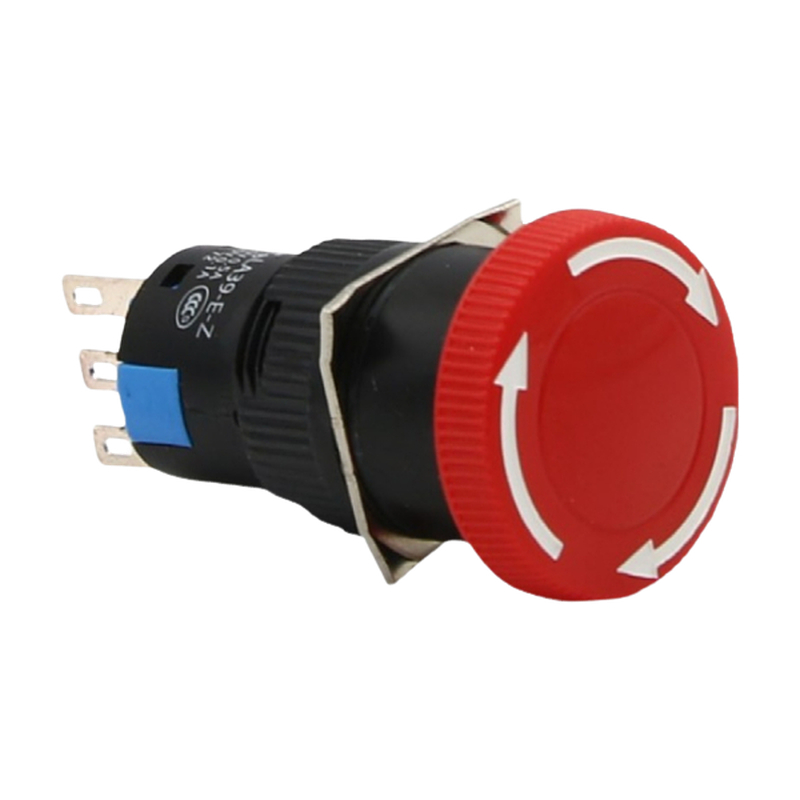

APT LA39-E Series Emergency Stop Buttons Press to lock right turn reset LA39-E11(22)Z/r-EP

19 review

Product Code:

6.25 0.00
LA39-E Series Emergency Stop Buttons Press to lock right turn reset The LA39-E series buttons are ingeniously designed, aesthetically pleasing, compact, easy to install, and have reliable contact, making the best choice for users who require panel miniaturization and integrated control. This series of buttons comes in a variety of shapes, with head shapes including round,, and rectangular, greatly meeting the needs of users.
LA39-E Series Emergency Stop Buttons Press to lock right turn reset :
Quantity

Subtotal: $6.25

Product details

LA39-E(Φ16mm)

Aesthetic, delicate, compact, quick-mount and reliable. Round, square and rectangular heads.

Important Parameters
  • Rated Insulation VoltageAC250V 50Hz
    Rated Thermal Current5A
    Electrical Endurance100,000 times for AC-15 50,000 times for DC-13
    Rated Current

    AC-15 24V/2A、110V/1A、220V/0.5A
    DC-13 24V/0.7A、110V/0.2A、220V/0.1A


Main Parameters

Rated Insulation Voltage

AC250V 50Hz

Power Frequency Withstand Voltage

AC1500V 50Hz .5s

Mechanical Endurance

1,000,000 times for normal pushbuttons,100,000 times for knobs,50,000 times for key switches and E-stop pushbuttons

Electrical Endurance

100,000 times for AC-15 50,000 times for DC-13

Ambient Temperature

-25℃~55℃

Storage Temperature

-30℃~70℃

Action Frequency

1,200 times per hour

Certificate

CCC、CE、RoHS

Compliance Standards

IEC 60947 / GB 14048.5

Degree of Protection

IP40

Altitude

Not more than 2,000m

Rated Thermal Current

5A
